Voting styles — low-score ballots

Generated from 03b_c3_b3_1_style-protest-vote.yaml — do not edit by hand. Regenerate: python STARVote_LH_tabulation_engine/tools_adam/scripts/build_yaml_pages.py.

Method: STAR (single winner) · 1 seat · Expected winner: Almond

Scenario

What if you dislike all the candidates? You can still vote: even low scores register a relative preference, and STAR will count them. Here every voter scores only 0s and 1s, yet a winner still emerges (Almond) from the 1s.

Ballots

The ballots as marked — the filled bubble is the score given, and the score is the number in its column:

# Ballot as marked Choco Almond Vanilla
1 A 0–5 STAR ballot — least-bad = Almond: Choco 0, Almond 1, Vanilla 0. 0 1 0

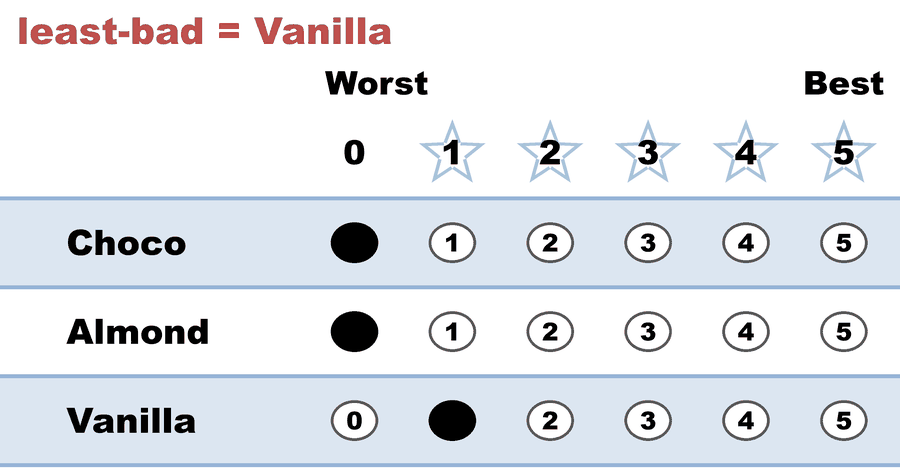

2 A 0–5 STAR ballot — least-bad = Vanilla: Choco 0, Almond 0, Vanilla 1. 0 0 1

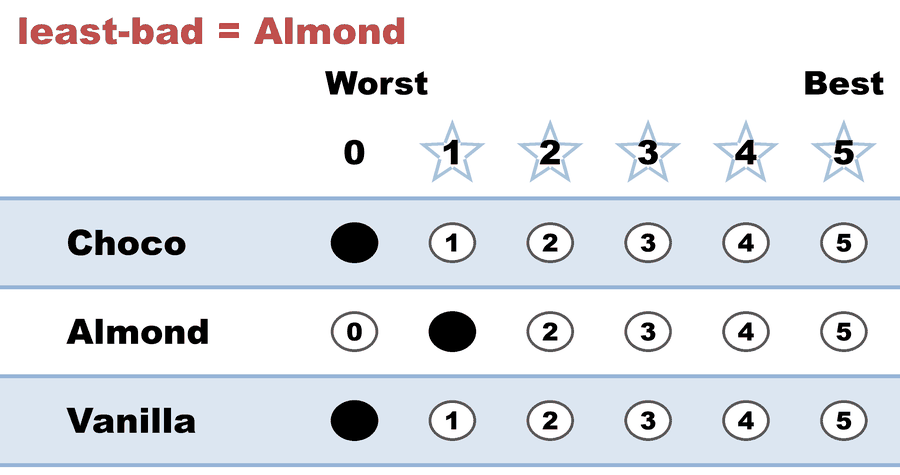

3 A 0–5 STAR ballot — least-bad = Almond: Choco 0, Almond 1, Vanilla 0. 0 1 0

The same ballots as the file records them:

Row 1 = candidate names; each later row is one voter's 0–5 scores (a N × prefix = N identical ballots).

Choco,Almond,Vanilla
    0,     1,      0   # least-bad = Almond
    0,     0,      1   # least-bad = Vanilla
    0,     1,      0   # least-bad = Almond

What the engine says

The count, step by step — the rounds and how the winner is reached:

[Divergence from STAR]
  STAR     = Almond
  Approval = Choco   (differs from STAR)

--- STAR Voting Method (single winner) ---

[STAR Voting]
 Tabulating 3 ballots.
Count × Choco,Almond,Vanilla
    2 ×     0,     1,      0
    1 ×     0,     0,      1

[STAR Voting: Scoring Round]
 The two highest-scoring candidates advance to the next round.
   Almond        -- 2 -- First place
   Vanilla       -- 1 -- Second place
   Choco         -- 0
 Almond and Vanilla advance.

[STAR Voting: Automatic Runoff Round]
 The candidate preferred in the most head-to-head matchups wins.
   Almond        -- 2 -- First place
   Vanilla       -- 1
   Equal Support -- 0
 Almond wins.
   Runoff math:
     3  ballots cast
   − 0  Equal Support (no preference between the two finalists)
     ─
     3  voters with a preference  (majority = 2)
           Almond 2 (67%)  ·  Vanilla 1 (33%)

[STAR Voting: Winner — STAR Voting Method (single winner)]
 Almond

Full audit — preference matrix, Condorcet, and score distribution

--- Runoff (Preference) Matrix ---
Head-to-head / pairwise comparison
Legend: For - Equal Support - Against
        * indicates Top 2 Finalist
                |     Choco   | * Almond   | * Vanilla  |
---------------------------------------------------------
        Choco > |     ---     | 0 - 1 - 2  | 0 - 2 - 1  |
     * Almond > |  2 - 1 - 0  |    ---     | 2 - 0 - 1  |
    * Vanilla > |  1 - 2 - 0  | 1 - 0 - 2  |    ---     |

[Condorcet Winner]
  Condorcet Winner: Almond — matches the STAR winner

[Condorcet Loser]
  Condorcet Loser: Choco — loses every head-to-head matchup — elected by Approval!

[Score Distribution] (how many ballots gave each star rating)
                Score
Candidate  5  4  3  2  1  0  | Total   Avg
Choco      0  0  0  0  0  3  |     0   0.0
Almond     0  0  0  0  2  1  |     2   0.7
Vanilla    0  0  0  0  1  2  |     1   0.3

Everything in one file: the _tabulated mirror (regenerated on every run; every analysis forced on).

Run it yourself:

python STARVote_LH_tabulation_engine/starvote_larry_hastings.py 01_STAR/02_Examples/cases/03b_c3_b3_1_style-protest-vote.yaml
