Three candidates, one ballot - single-winner STAR¶

Generated from 02a_c3_b1_three-candidates.yaml — do not edit by hand. Regenerate: python STARVote_LH_tabulation_engine/tools_adam/scripts/build_yaml_pages.py.

Method: STAR (single winner) · 1 seat · Expected winner: Choco

Scenario¶

Election: Pick your favorite ice cream flavor. Edge case: one voter only (one ballot).

Caroline - she scores all three flavors: - she loves Choco flavor (5 stars) - she is OK with Vanilla flavor (3 stars) - she dislikes Almond flavor (0 stars)

With a single voter, the winner is simply her highest-scored flavor (Choco); the automatic runoff can't change that. This is our baseline before we add more voters in the next example.

Ballots¶

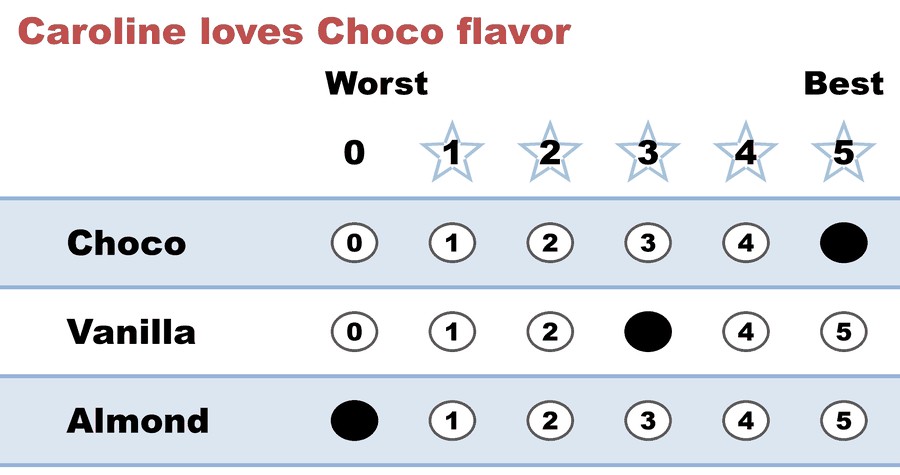

The ballot as marked — the filled bubble is the score given, and the score is the number in its column:

#	Ballot as marked	Choco	Vanilla	Almond
1		5	3	0

The same ballot as the file records it:

Row 1 = candidate names; each later row is one voter's 0–5 scores (a N × prefix = N identical ballots).

Choco,Vanilla,Almond
    5,      3,     0  # Caroline loves Choco flavor

What the engine says¶

The count, step by step — the rounds and how the winner is reached:

--- STAR Voting Method (single winner) ---

[STAR Voting]
 Tabulating 1 ballot.
Choco,Vanilla,Almond
    5,      3,     0

[STAR Voting: Scoring Round]
 The two highest-scoring candidates advance to the next round.
   Choco         -- 5 -- First place
   Vanilla       -- 3 -- Second place
   Almond        -- 0
 Choco and Vanilla advance.

[STAR Voting: Automatic Runoff Round]
 The candidate preferred in the most head-to-head matchups wins.
   Choco         -- 1 -- First place
   Vanilla       -- 0
   Equal Support -- 0
 Choco wins.
   Runoff math:
     1  ballots cast
   − 0  Equal Support (no preference between the two finalists)
     ─
     1  voters with a preference  (majority = 1)
           Choco 1 (100%)  ·  Vanilla 0 (0%)

[STAR Voting: Winner — STAR Voting Method (single winner)]
 Choco

Full audit — preference matrix, Condorcet, and score distribution¶

--- Runoff (Preference) Matrix ---
Head-to-head / pairwise comparison
Legend: For - Equal Support - Against
        * indicates Top 2 Finalist
                |   * Choco   | * Vanilla  |   Almond   |
---------------------------------------------------------
      * Choco > |     ---     | 1 - 0 - 0  | 1 - 0 - 0  |
    * Vanilla > |  0 - 0 - 1  |    ---     | 1 - 0 - 0  |
       Almond > |  0 - 0 - 1  | 0 - 0 - 1  |    ---     |

[Condorcet Winner]
  Condorcet Winner: Choco — matches the STAR winner

[Condorcet Loser]
  Condorcet Loser: Almond — loses every head-to-head matchup

[Score Distribution] (how many ballots gave each star rating)
                Score
Candidate  5  4  3  2  1  0  | Total   Avg
Choco      1  0  0  0  0  0  |     5   5.0
Vanilla    0  0  1  0  0  0  |     3   3.0
Almond     0  0  0  0  0  1  |     0   0.0

Everything in one file: the _tabulated mirror (regenerated on every run; every analysis forced on).

Run it yourself:

python STARVote_LH_tabulation_engine/starvote_larry_hastings.py 01_STAR/02_Examples/cases/02a_c3_b1_three-candidates.yaml
