Voting styles — a valid STAR bullet vote (3 candidates)¶

Generated from 03a_c3_b3_style-bullet-vote.yaml — do not edit by hand. Regenerate: python STARVote_LH_tabulation_engine/tools_adam/scripts/build_yaml_pages.py.

Method: STAR (single winner) · 1 seat · Expected winner: Vanilla

Scenario¶

Three legal STAR ballot styles on one ballot set: a full/expressive ballot using the whole 0-5 range, a ballot with equal scores, and a bullet vote (only one candidate scored). All are valid; bullet voting is allowed but not recommended — if your one pick doesn't reach the runoff, your ballot has no say in the final head-to-head, so you forfeit influence. Vanilla wins here either way.

Ballots¶

The ballots as marked — the filled bubble is the score given, and the score is the number in its column:

#	Choco	Almond	Vanilla
1	1	2	5
2	0	5	5
3	0	0	5

The same ballots as the file records them:

Row 1 = candidate names; each later row is one voter's 0–5 scores (a N × prefix = N identical ballots).

Choco,Almond,Vanilla

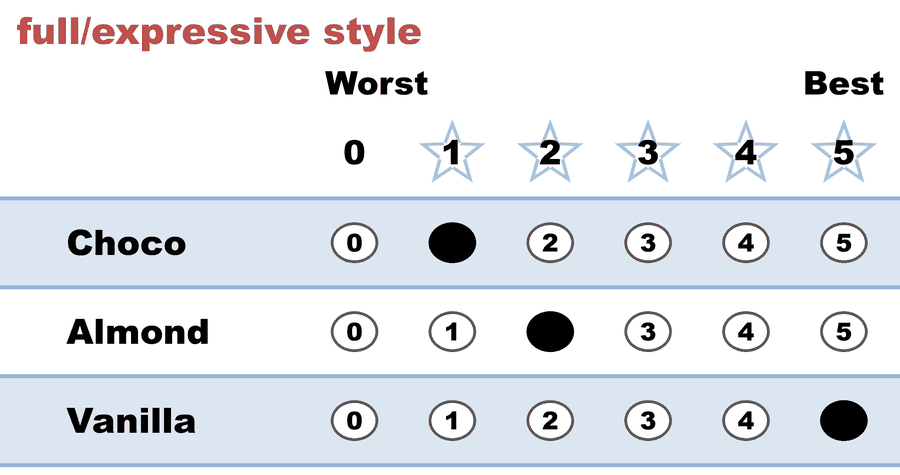

    1,     2,      5   # full/expressive style

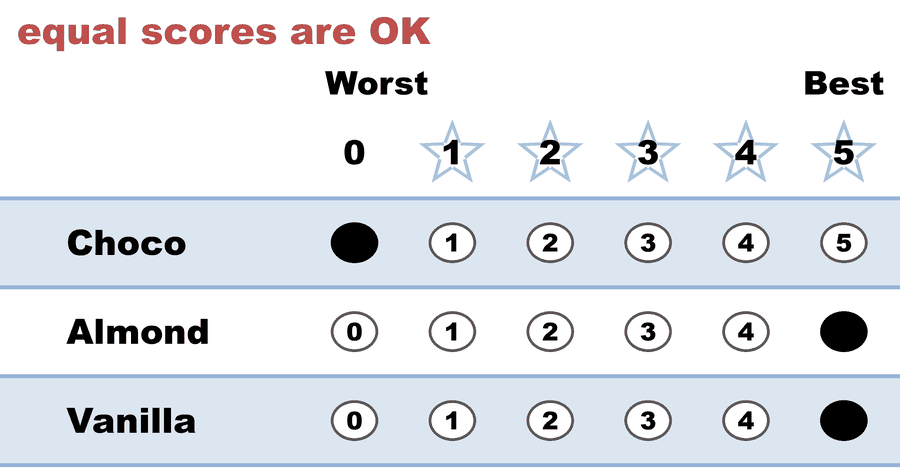

    0,     5,      5   # equal scores are OK

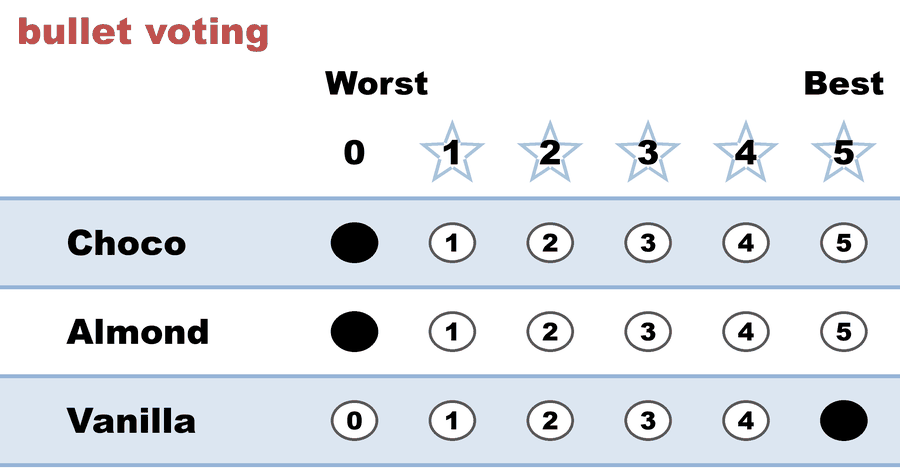

    0,     0,      5   # bullet voting

What the engine says¶

The count, step by step — the rounds and how the winner is reached:

--- STAR Voting Method (single winner) ---

[STAR Voting]
 Tabulating 3 ballots.
Choco,Almond,Vanilla
    1,     2,      5
    0,     5,      5
    0,     0,      5

[STAR Voting: Scoring Round]
 The two highest-scoring candidates advance to the next round.
   Vanilla       -- 15 -- First place
   Almond        --  7 -- Second place
   Choco         --  1
 Vanilla and Almond advance.

[STAR Voting: Automatic Runoff Round]
 The candidate preferred in the most head-to-head matchups wins.
   Vanilla       -- 2 -- First place
   Almond        -- 0
   Equal Support -- 1
 Vanilla wins.
   Runoff math:
     3  ballots cast
   − 1  Equal Support (no preference between the two finalists)
     ─
     2  voters with a preference  (majority = 2)
           Vanilla 2 (100%)  ·  Almond 0 (0%)

[STAR Voting: Winner — STAR Voting Method (single winner)]
 Vanilla

Full audit — preference matrix, Condorcet, and score distribution¶

--- Runoff (Preference) Matrix ---
Head-to-head / pairwise comparison
Legend: For - Equal Support - Against
        * indicates Top 2 Finalist
                |     Choco   | * Almond   | * Vanilla  |
---------------------------------------------------------
        Choco > |     ---     | 0 - 1 - 2  | 0 - 0 - 3  |
     * Almond > |  2 - 1 - 0  |    ---     | 0 - 1 - 2  |
    * Vanilla > |  3 - 0 - 0  | 2 - 1 - 0  |    ---     |

[Condorcet Winner]
  Condorcet Winner: Vanilla — matches the STAR winner

[Condorcet Loser]
  Condorcet Loser: Choco — loses every head-to-head matchup

[Score Distribution] (how many ballots gave each star rating)
                Score
Candidate  5  4  3  2  1  0  | Total   Avg
Choco      0  0  0  0  1  2  |     1   0.3
Almond     1  0  0  1  0  1  |     7   2.3
Vanilla    3  0  0  0  0  0  |    15   5.0

Everything in one file: the _tabulated mirror (regenerated on every run; every analysis forced on).

Run it yourself:

python STARVote_LH_tabulation_engine/starvote_larry_hastings.py 01_STAR/02_Examples/cases/03a_c3_b3_style-bullet-vote.yaml
