Crowded field, rung 5 — 5 candidates, 65 voters, counted by RCV-IRV¶

Generated from crowded_field_c5_irv.yaml — do not edit by hand. Regenerate: python STARVote_LH_tabulation_engine/tools_adam/scripts/build_yaml_pages.py.

Method: RCV-IRV (Instant Runoff) · 1 seat · Expected winner: Elsa

Official tie-break (lot) order: Ana > Bruno > Diego > Elsa > Greta — consulted only if every deterministic tiebreaker stays tied (how the ladder works).

Scenario¶

RUNG 2 — the same voters, two more candidates, and both choose-one methods lose the Condorcet winner.

Diego still beats all four rivals head-to-head (crowded_field_c5_ranked_robin.yaml proves it). But first choices are what these methods count, and Bruno at 6 and Elsa at 14 now stand between Diego and the voters who previously had nobody closer. Diego drops from 34 first choices to 9, is eliminated early, and the seat goes to Elsa.

Round 1 is also the Choose-One count, and it elects Bruno on 23 of 65 — a candidate Diego beats head-to-head. Note what caused all of this: not one voter changing their mind, only two more names on the ballot.

Same 65 voters and the same fixed candidate positions as crowded_field_c5_star.yaml, on a ranked ballot — the same ballots as crowded_field_c5_ranked_robin.yaml, counted by elimination instead of head-to-head.

Construction: build_ladder.py in this folder. 65 voters in seven blocs at 0, 4, 8, 12, 16, 20, 24 (sizes 6, 10, 13, 9, 12, 8, 7); candidates fixed at Ana 1 · Bruno 6 · Clara 9 · Diego 11 · Elsa 14 · Felix 16 · Greta 22; utility = minus distance; scores = each bloc's own min-max scaling onto 0–5. Nothing is tuned, and no count at any rung is settled by a tie-break.

Ballots¶

Each row is one voter's ranking, most-preferred first (N: prefix = N identical ballots).

6:Ana>Bruno>Diego>Elsa>Greta    # bloc at 0
10:Bruno>Ana>Diego>Elsa>Greta    # bloc at 4
13:Bruno>Diego>Elsa>Ana>Greta    # bloc at 8
9:Diego>Elsa>Bruno>Greta>Ana    # bloc at 12
12:Elsa>Diego>Greta>Bruno>Ana    # bloc at 16
8:Greta>Elsa>Diego>Bruno>Ana    # bloc at 20
7:Greta>Elsa>Diego>Bruno>Ana    # bloc at 24

What the engine says¶

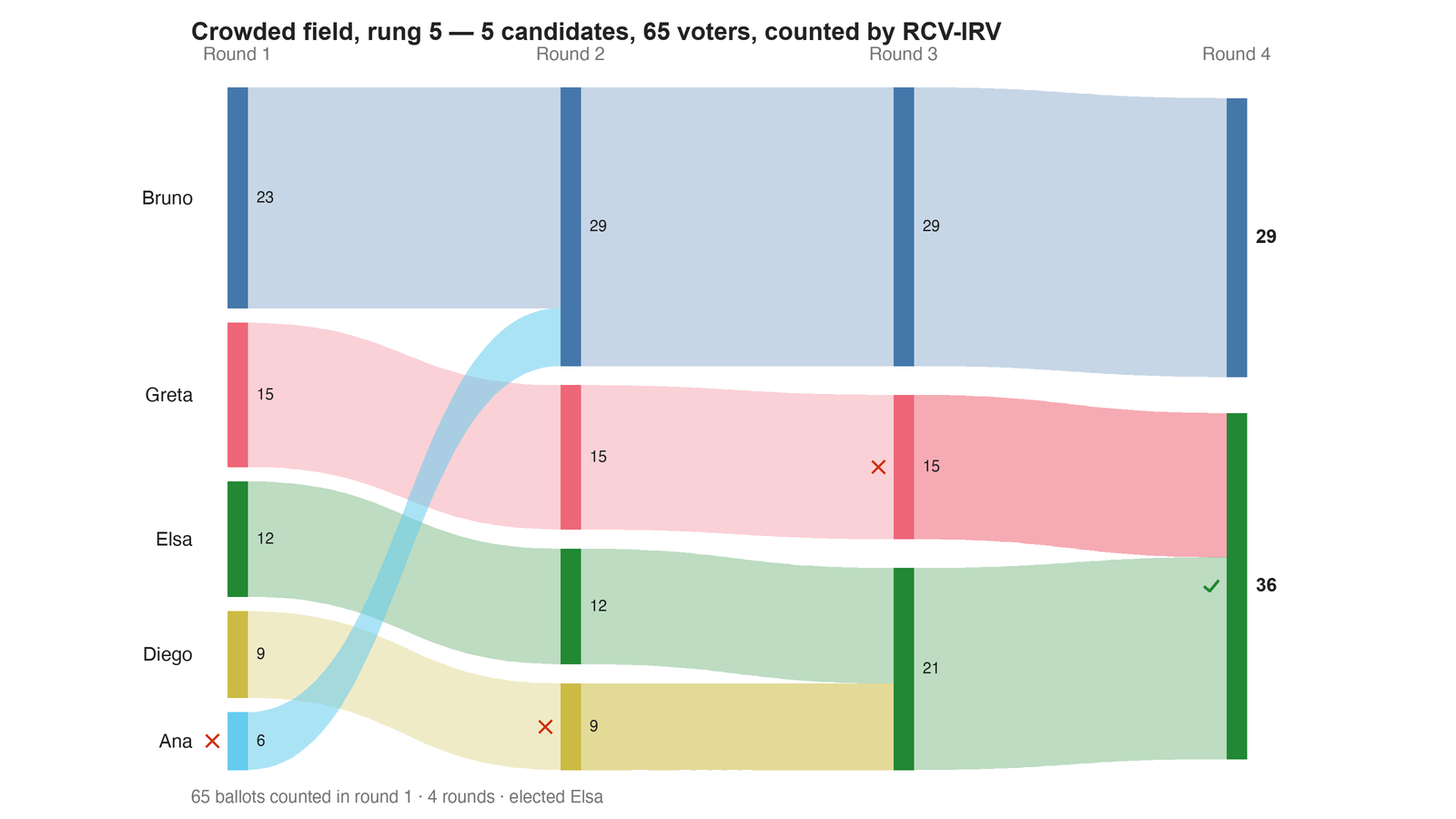

Round-by-round Sankey diagram: each candidate's votes as a band, and where the votes of an eliminated candidate transferred to.

Where the votes went. Band thickness is votes; a band leaving an eliminated candidate lands on whoever that ballot ranked next, or on inactive if it ranked nobody who was left.

The count, step by step — the rounds and how the winner is reached:

--- RCV / Instant-Runoff Voting (single winner) ---
  Crowded field, rung 5 — 5 candidates, 65 voters, counted by RCV-IRV
 Tabulating 65 ballots (ranked ballots).

ROUND 1
Candidate      Votes  Status
-----------  -------  --------
Bruno             23  Hopeful
Greta             15  Hopeful
Elsa              12  Hopeful
Diego              9  Hopeful
Ana                6  Rejected

ROUND 2
Candidate      Votes  Status
-----------  -------  --------
Bruno             29  Hopeful
Greta             15  Hopeful
Elsa              12  Hopeful
Diego              9  Rejected
Ana                0  Rejected

ROUND 3
Candidate      Votes  Status
-----------  -------  --------
Bruno             29  Hopeful
Elsa              21  Hopeful
Greta             15  Rejected
Diego              0  Rejected
Ana                0  Rejected

FINAL RESULT
Candidate      Votes  Status
-----------  -------  --------
Elsa              36  Elected
Bruno             29  Rejected
Greta              0  Rejected
Diego              0  Rejected
Ana                0  Rejected


Winner(s) — RCV / Instant-Runoff Voting (single winner)
  Elsa

Full audit — preference matrix, Condorcet, and score distribution¶

--- Smith Set (the generalized Condorcet winner) ---
The smallest group whose every member beats every candidate outside it —
the honest answer to "who is even in contention?".
   Smith set (1 of 5): Diego
   Outside (4):        Ana, Bruno, Elsa, Greta
   One member ⇒ Diego is the Condorcet winner, beating every rival head-to-head.
   RCV-IRV winner Elsa is OUTSIDE the Smith set. ✗
      Every member of the set (Diego) beats Elsa head-to-head, yet
      RCV-IRV elected Elsa anyway. RCV-IRV is not Smith-efficient (nor
      Condorcet-efficient) — this is the shape a center squeeze leaves behind.
   More: 07_Concepts/topics/smith_set.md

Everything in one file: the _tabulated mirror (regenerated on every run; every analysis forced on).

Run it yourself:

python STARVote_LH_tabulation_engine/starvote_larry_hastings.py method_comparisons/crowded_field/cases/crowded_field_c5_irv.yaml
