Batch elimination empties the field — the perfect cycle¶

Generated from batch_all_out_cycle_c3_b3.yaml — do not edit by hand. Regenerate: python STARVote_LH_tabulation_engine/tools_adam/scripts/build_yaml_pages.py.

Method: RCV-IRV (Instant Runoff) · 1 seat · Expected winner: Amy

Scenario¶

Three voters, three candidates, and the smallest profile in which an instant-runoff count has nobody left to elect. Amy, Bruno and Clara each hold exactly one first choice, and the three ballots rotate: Amy>Bruno>Clara, Bruno>Clara>Amy, Clara>Amy>Bruno. Nobody has a majority (2 of 3), so somebody must be eliminated — and every candidate is tied for fewest first choices. Under the BATCH convention, which the Stanford Encyclopedia entry and pref_voting both use, you remove ALL candidates tied for last in one step. Here that is the whole field. The count stops with an empty ballot, and the stated answer is that all three candidates TIE for the win. That is not a bug in the convention, it is the convention working. This profile is perfectly symmetric: rotate the candidate names and you get the same three ballots back in a different order. So an ANONYMOUS and NEUTRAL rule — one that ignores who cast which ballot and shows no favouritism between names — has nothing left to separate Amy from Bruno from Clara, and a three-way tie is the only answer it can give. See 07_Concepts/topics/ties/ties_are_forced.md for the theorem. This engine does not do that. The vendored pyrankvote cuts one candidate, transfers, and names a single winner — and WHICH one depends on the order the ballots happen to be listed in. All six row orderings of these same three ballots were run: the winner is always the first row's first choice. Amy in two orderings, Bruno in two, Clara in two. That is an anonymity failure, not a neutrality failure, and it is undisclosed. The expected_winners below records what this engine prints for THIS row order; it is not the method's answer. Lesson: 07_Concepts/topics/ties/batch_elimination.md

Ballots¶

Each row is one voter's ranking, most-preferred first (N: prefix = N identical ballots).

Amy>Bruno>Clara
Bruno>Clara>Amy
Clara>Amy>Bruno

What the engine says¶

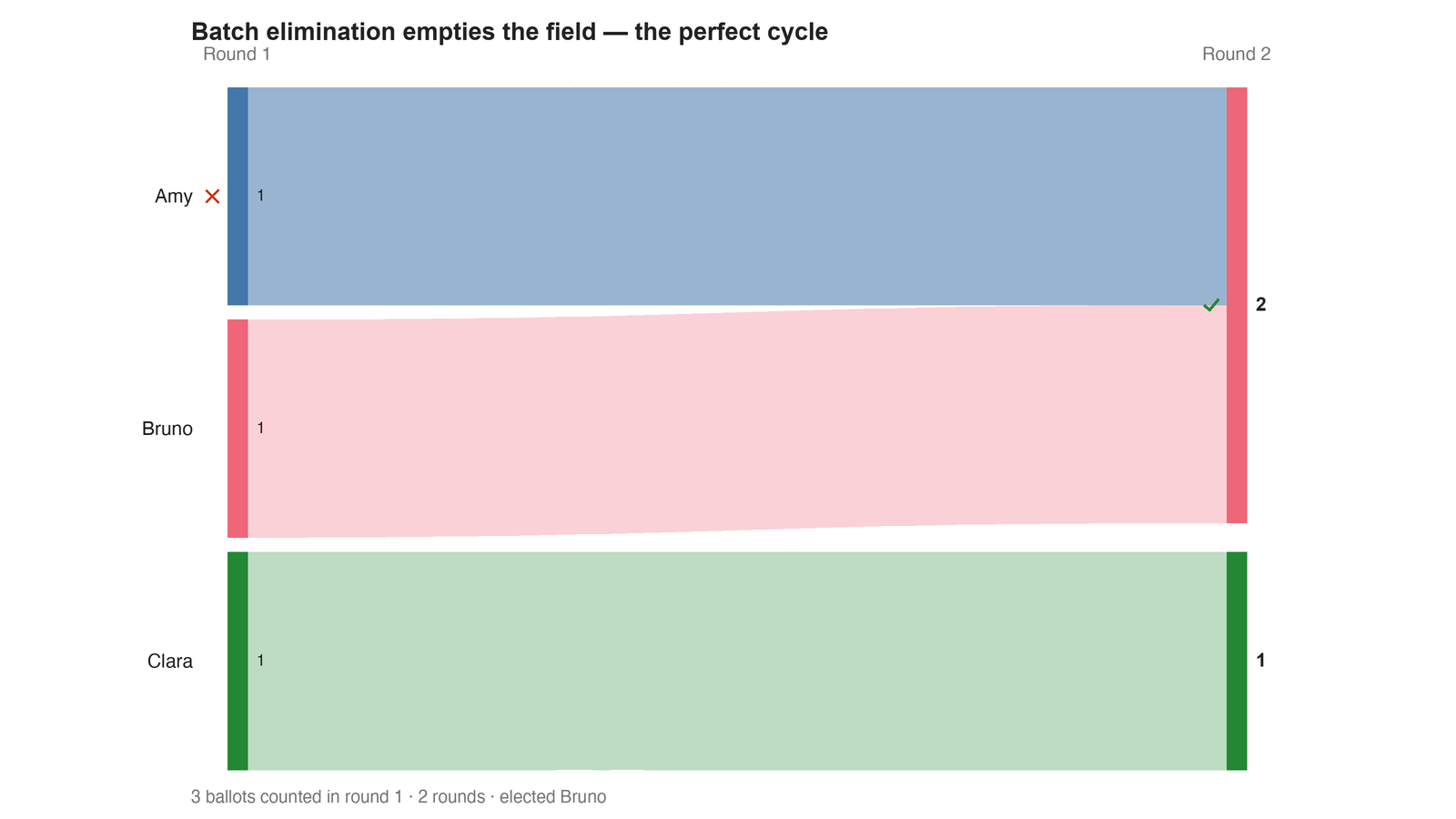

Round-by-round Sankey diagram: each candidate's votes as a band, and where the votes of an eliminated candidate transferred to.

Where the votes went. Band thickness is votes; a band leaving an eliminated candidate lands on whoever that ballot ranked next, or on inactive if it ranked nobody who was left.

The count, step by step — the rounds and how the winner is reached:

--- RCV / Instant-Runoff Voting (single winner) ---
  Batch elimination empties the field — the perfect cycle
 Tabulating 3 ballots (ranked ballots).

ROUND 1
Candidate      Votes  Status
-----------  -------  --------
Amy                1  Hopeful
Bruno              1  Hopeful
Clara              1  Rejected

FINAL RESULT
Candidate      Votes  Status
-----------  -------  --------
Amy                2  Elected
Bruno              1  Rejected
Clara              0  Rejected


Winner(s) — RCV / Instant-Runoff Voting (single winner)
  Amy

Full audit — preference matrix, Condorcet, and score distribution¶

--- Smith Set (the generalized Condorcet winner) ---
The smallest group whose every member beats every candidate outside it —
the honest answer to "who is even in contention?".
   Smith set (3 of 3): Amy, Bruno, Clara
   Outside (0):        —
   More than one member ⇒ NO Condorcet winner: the top of the tournament is a
   cycle, so the strongest "candidate" is a set, not a person. Which member of
   the set should win is exactly what Minimax / Ranked Pairs / Schulze disagree
   about — see 05_Ranked_Robin/01_Learn/cycle_resolution.md.
   RCV-IRV winner Amy is INSIDE the Smith set. ✓
      Not guaranteed — RCV-IRV is not Smith-efficient — but it holds here.
   More: 07_Concepts/topics/smith_set.md

Everything in one file: the _tabulated mirror (regenerated on every run; every analysis forced on).

Run it yourself:

python STARVote_LH_tabulation_engine/starvote_larry_hastings.py 06_Other/RCV_IRV/cases/batch_all_out_cycle_c3_b3.yaml
