STV — 3 seats, 7 candidates (proportional RCV)

Generated from 03a_stv_3seats.yaml — do not edit by hand. Regenerate: python STARVote_LH_tabulation_engine/tools_adam/scripts/build_yaml_pages.py.

Method: STV (proportional, ranked ballots) · 3 seats · Expected winners: Housing, Schools, SmallBiz

Scenario

STV — the proportional method for RANKED ballots — fills 3 seats from a 100-voter, 7-candidate field: a 58-voter community-services wing and a 42-voter business wing. Proportionality gives the majority two seats (Housing, Schools) and the minority one (SmallBiz), where Bloc voting would hand the majority a 3-0 sweep. Score-ballot counterpart: 03_STAR_PR/ (same electorate logic under sss / allocated / rrv).

Ballots

Each row is one voter's ranking, most-preferred first (N: prefix = N identical ballots).

29:Housing>Schools>Parks>Transit>SmallBiz>BigBiz>TaxCuts
15:Schools>Housing>Parks>Transit>SmallBiz>BigBiz>TaxCuts
13:Parks>Schools>Housing>Transit>SmallBiz>BigBiz>TaxCuts
1:Transit>Schools>Housing>Parks>SmallBiz>BigBiz>TaxCuts
22:SmallBiz>BigBiz>TaxCuts>Housing>Schools>Parks>Transit
17:BigBiz>SmallBiz>TaxCuts>Housing>Schools>Parks>Transit
3:TaxCuts>SmallBiz>BigBiz>Housing>Schools>Parks>Transit

What the engine says

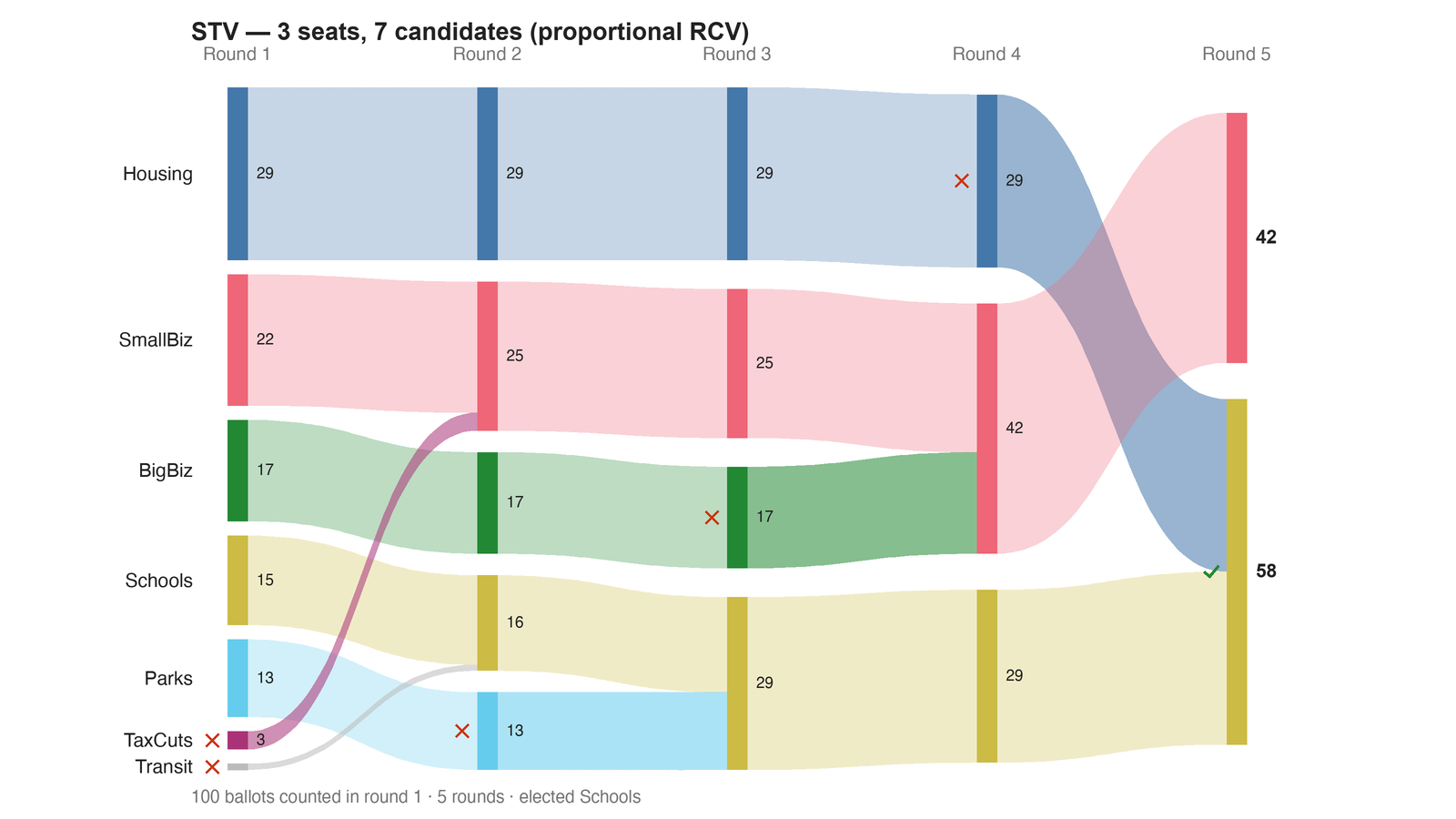

Round-by-round Sankey diagram: each candidate's votes as a band, and where the votes of an eliminated candidate transferred to.

Where the votes went. Band thickness is votes; a band leaving an eliminated candidate lands on whoever that ballot ranked next, or on inactive if it ranked nobody who was left.

The count, step by step — the rounds and how the winner is reached:

--- STV / Single Transferable Vote (multi-winner — 3 seats) ---
  STV — 3 seats, 7 candidates (proportional RCV)
 Tabulating 100 ballots (ranked ballots).
 3 seats; quota = 25.00 (exact Droop, votes/(seats+1)) — 25.0% of 100.
 Elected at >= quota, and every surplus is measured from it.
 (Hand-count Droop, floor(100/4)+1 = 26, is a different but equally standard rule.)

ROUND 1
Candidate      Votes  Status
-----------  -------  --------
Housing           29  Elected
SmallBiz          22  Hopeful
BigBiz            17  Hopeful
Schools           15  Hopeful
Parks             13  Hopeful
TaxCuts            3  Hopeful
Transit            1  Hopeful

ROUND 2
Candidate      Votes  Status
-----------  -------  --------
Housing        25.00  Elected
SmallBiz       22.00  Hopeful
Schools        19.00  Hopeful
BigBiz         17.00  Hopeful
Parks          13.00  Rejected
TaxCuts         3.00  Rejected
Transit         1.00  Rejected

ROUND 3
Candidate      Votes  Status
-----------  -------  --------
Housing        25.00  Elected
Schools        33.00  Elected
SmallBiz       25.00  Hopeful
BigBiz         17.00  Hopeful
Parks           0.00  Rejected
TaxCuts         0.00  Rejected
Transit         0.00  Rejected

FINAL RESULT
Candidate      Votes  Status
-----------  -------  --------
Housing        25.00  Elected
Schools        25.00  Elected
SmallBiz       33.00  Elected
BigBiz         17.00  Rejected
Parks           0.00  Rejected
TaxCuts         0.00  Rejected
Transit         0.00  Rejected


Winner(s) — STV / Single Transferable Vote (multi-winner — 3 seats)
  Housing
  Schools
  SmallBiz

Full audit — preference matrix, Condorcet, and score distribution

--- Smith Set (the generalized Condorcet winner) ---
The smallest group whose every member beats every candidate outside it —
the honest answer to "who is even in contention?".
   Smith set (1 of 7): Housing
   Outside (6):        Schools, Parks, Transit, SmallBiz, BigBiz, TaxCuts
   One member ⇒ Housing is the Condorcet winner, beating every rival head-to-head.
   More: 07_Concepts/topics/smith_set.md

Everything in one file: the _tabulated mirror (regenerated on every run; every analysis forced on).

Run it yourself:

python STARVote_LH_tabulation_engine/starvote_larry_hastings.py 06_Other/STV/cases/03a_stv_3seats.yaml
